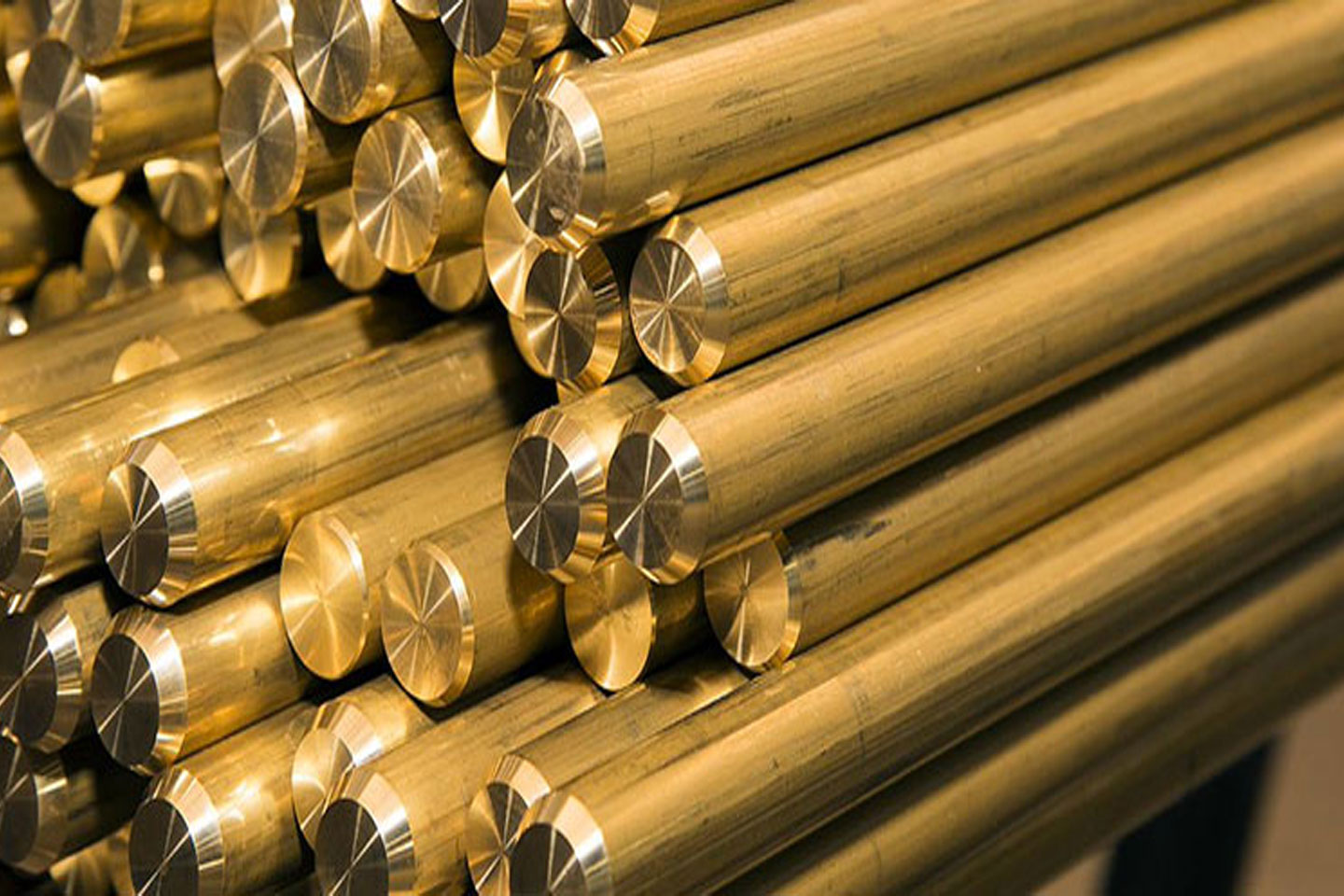

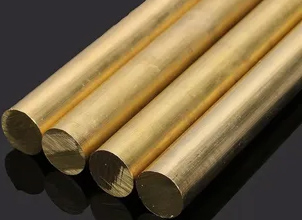

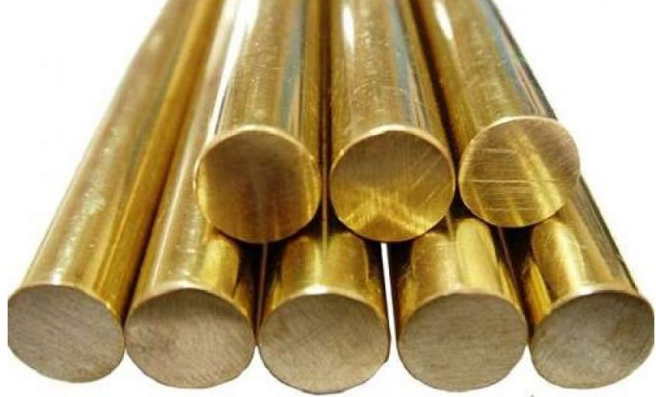

Round Bar

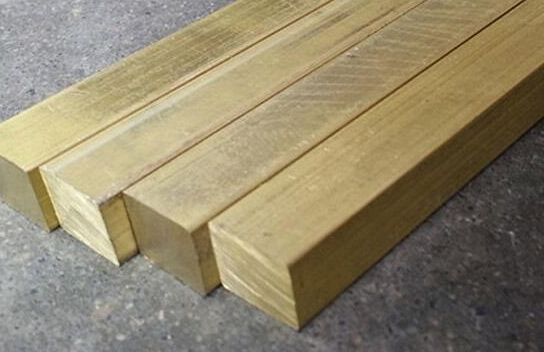

Square Bar

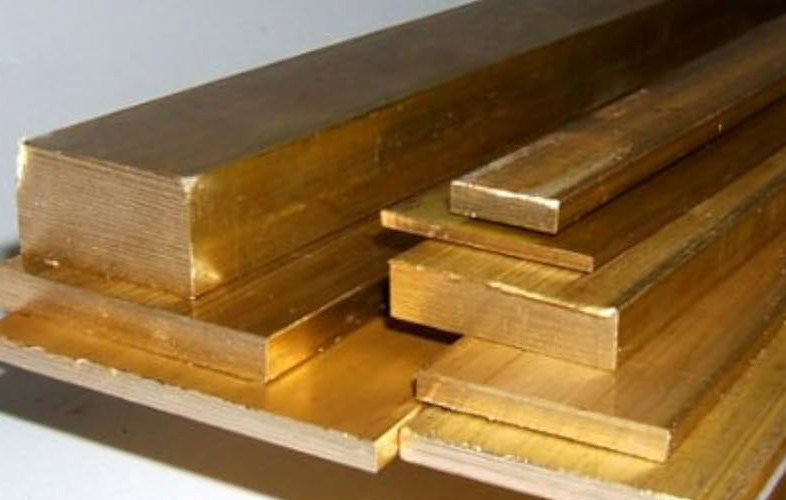

Round Corner Square Bar

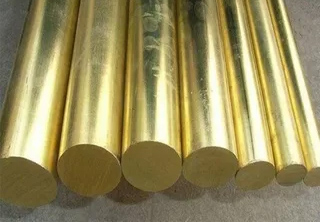

Hot Rolled Bar
Forged Bar
Machined Bar

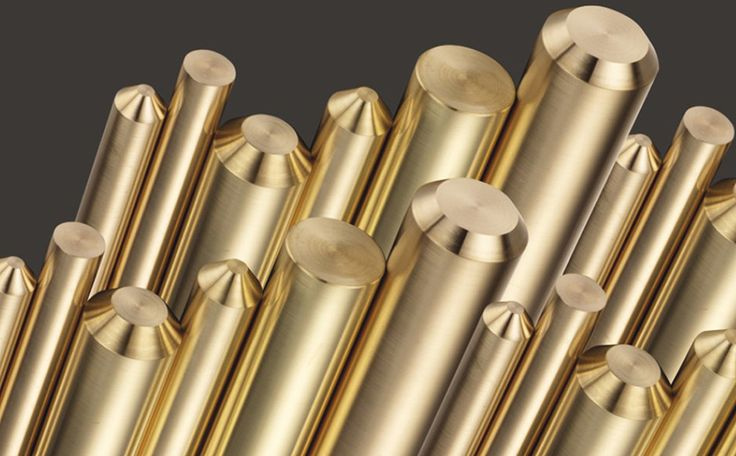

Bright Bar

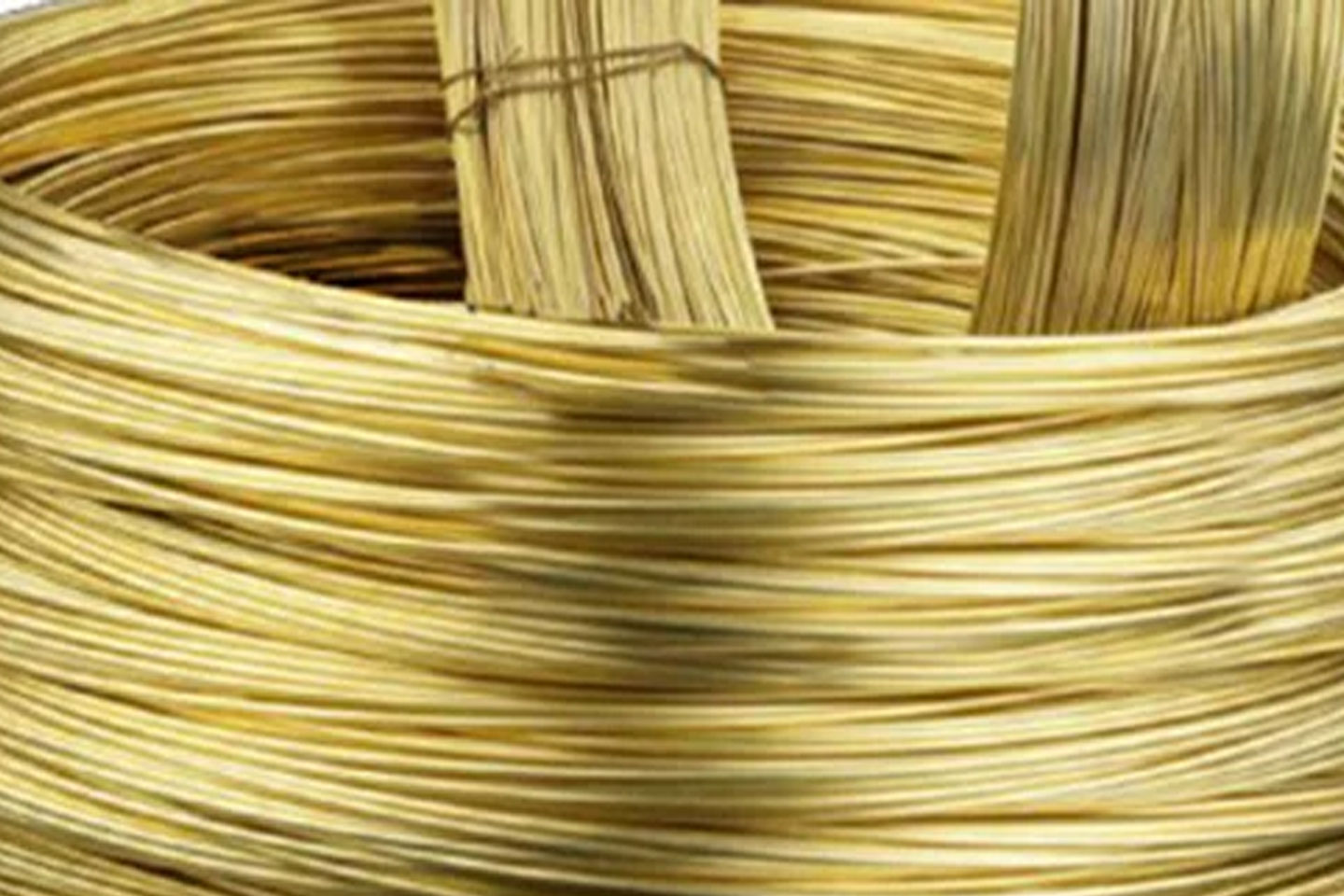

Wire rod

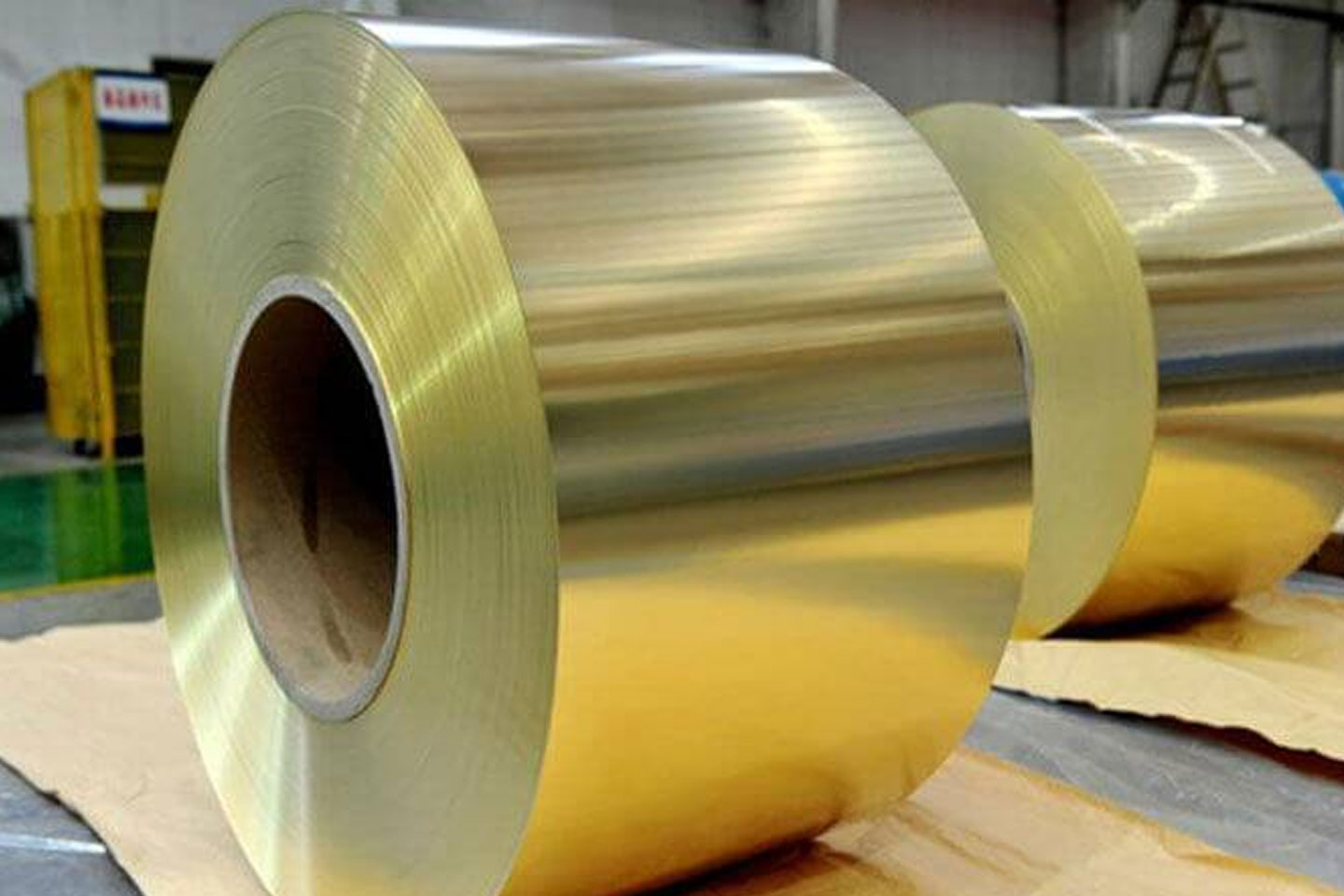

Coil

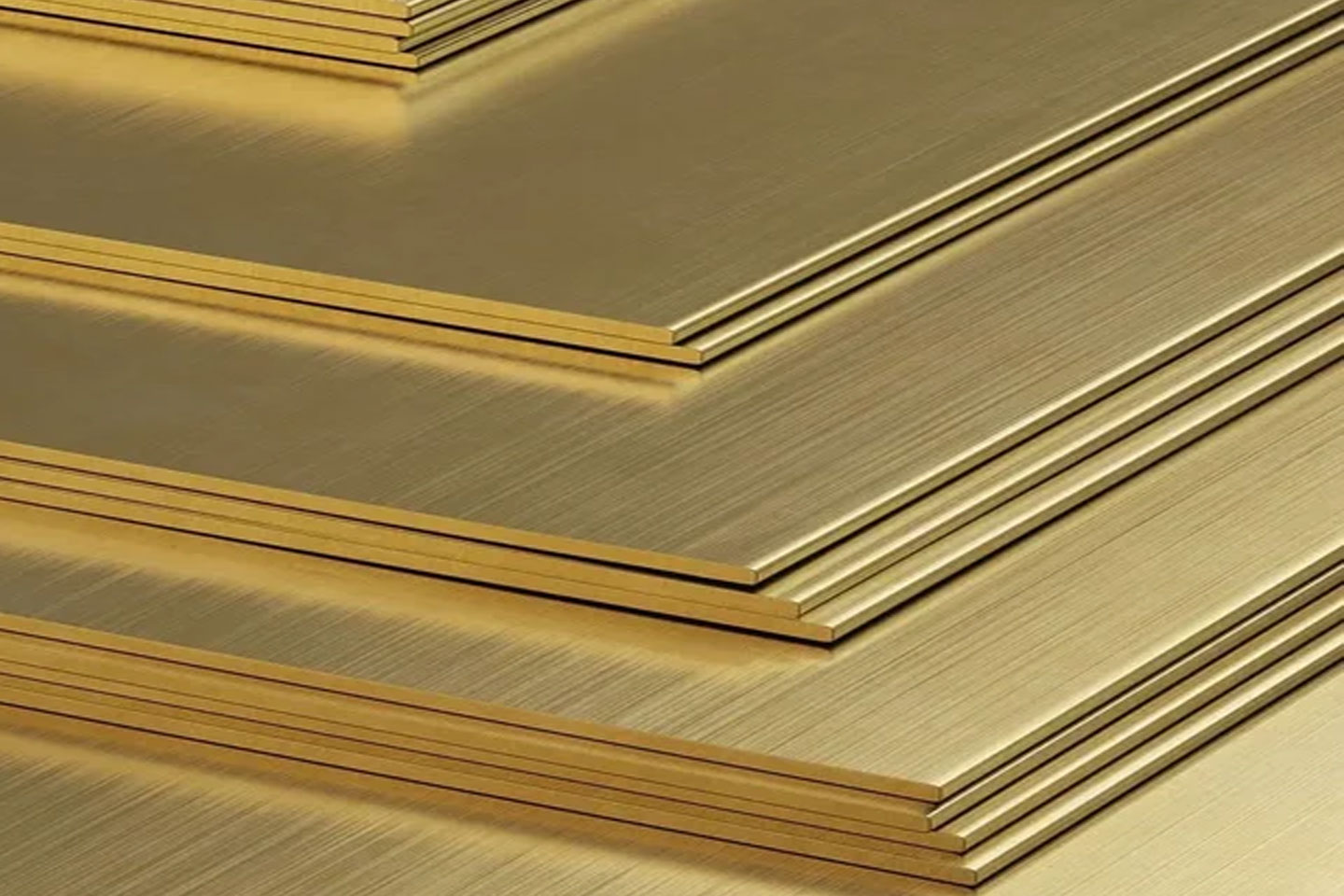

Sheets-Plates

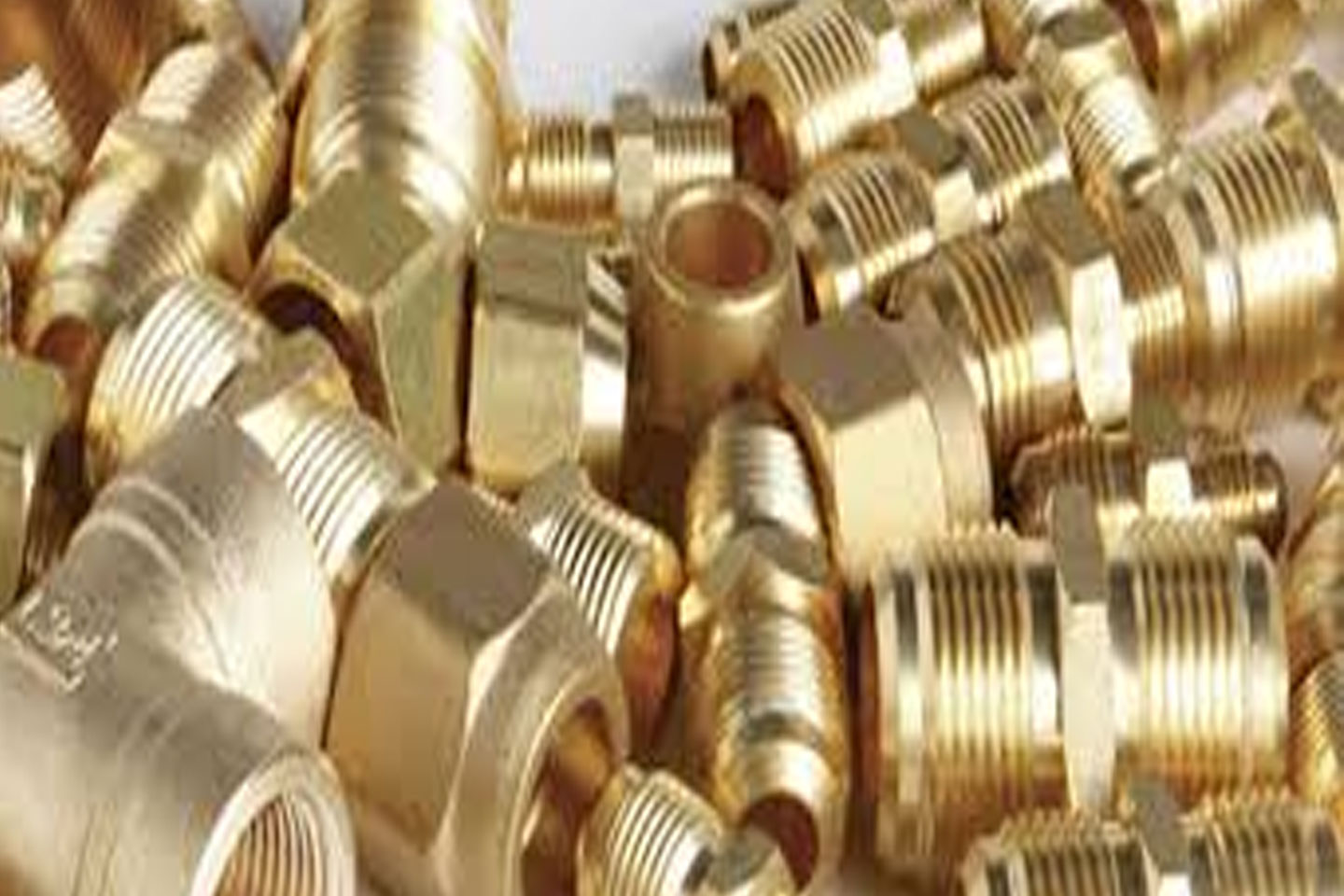

Pipe Fittings

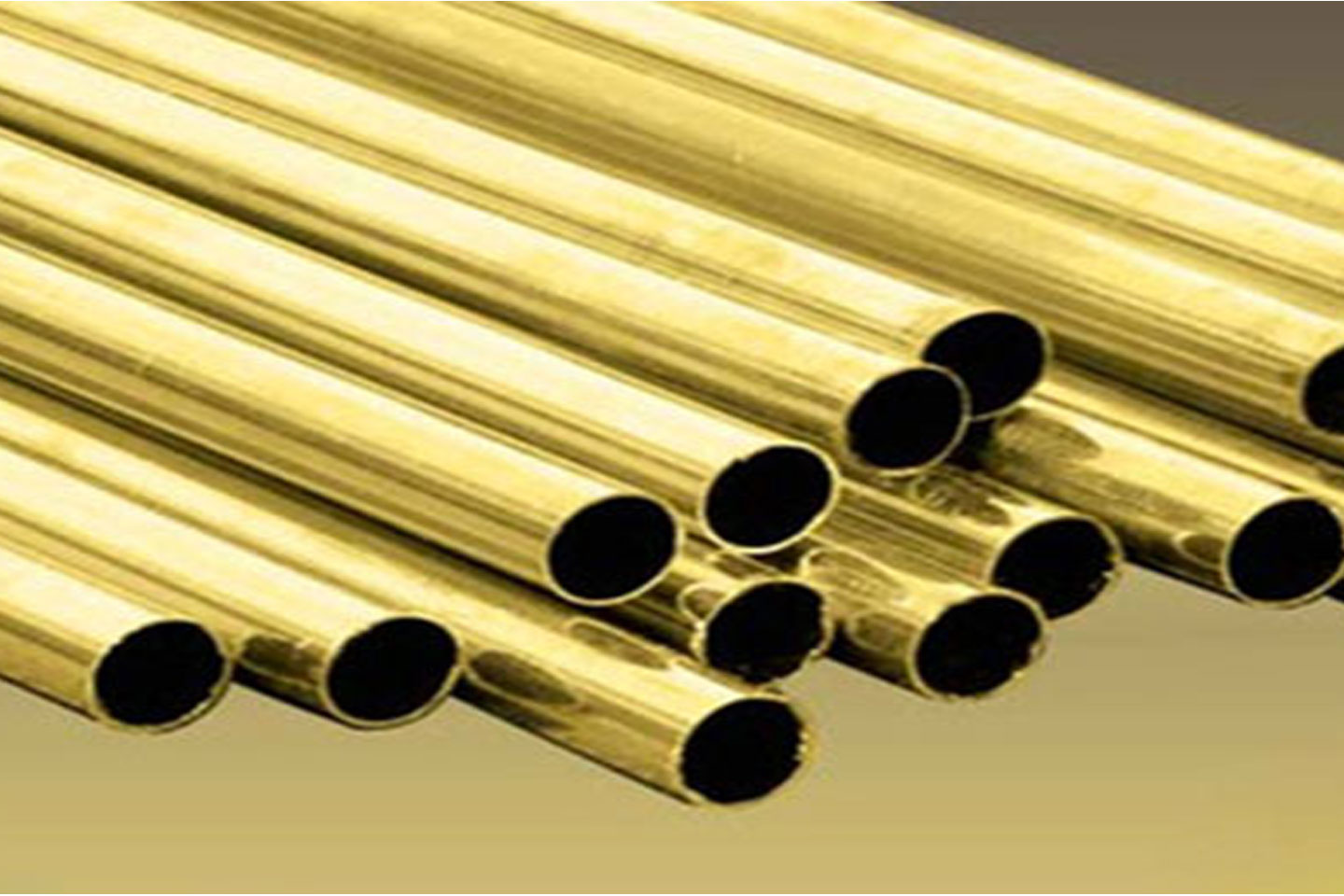

Pipe
Brass is an alloy of copper and zinc, typically containing 60-80% copper and 20-40% zinc. It is a versatile material with good corrosion resistance and excellent machinability. Brass is commonly used in applications such as plumbing fixtures, electrical components, decorative hardware and musical instruments.
Brass is available in various forms, including wire rod, rolled round bars, square, hex, bright bars & forged bars, forged gears, blocks, die blocks, forging ingots, flats, sheets, coils, angles, plates and pipes. These forms are used in different industries based on their properties and applications. For example, wire rods and round bars are used in electrical components, while sheets and plates are used in decorative hardware and architecture. The choice of brass form depends on the specific application and requirements.
Specification
| Grade | Composition | Tensile Strength | Yield Strength | Elongation | Hardness |
|---|---|---|---|---|---|
| C26000 | 70% Copper, 30% Zinc | 310 MPa | 140 MPa | 40% | 65 HRB |
| C36000 | 61.5% Copper, 35% Zinc, 3% Lead | 610 MPa | 350 MPa | 10% | 80 HRB |
| C46400 | 60% Copper, 39.2% Zinc, 0.8% Lead | 520 MPa | 205 MPa | 45% | 78 HRB |
| C48500 | 58% Copper, 40% Zinc, 2% Silicon | 440 MPa | 240 MPa | 30% | 80 HRB |
| C68700 | 78% Copper, 20% Zinc, 2% Aluminum | 320 MPa | 110 MPa | 45% | 65 HRB |
| C86300 | 60% Copper, 3.5% Nickel, 3% Silicon, 33.5% Zinc | 620 MPa | 240 MPa | 15% | 105 HRB |
| C93200 | 83% Copper, 7% Tin, 7% Lead, 3% Zinc | 310 MPa | 140 MPa | 20% | 80 HRB |
| C95400 | 83% Copper, 9% Aluminum, 4% Iron, 4% Nickel | 620 MPa | 310 MPa | 10% | 120 HRB |
